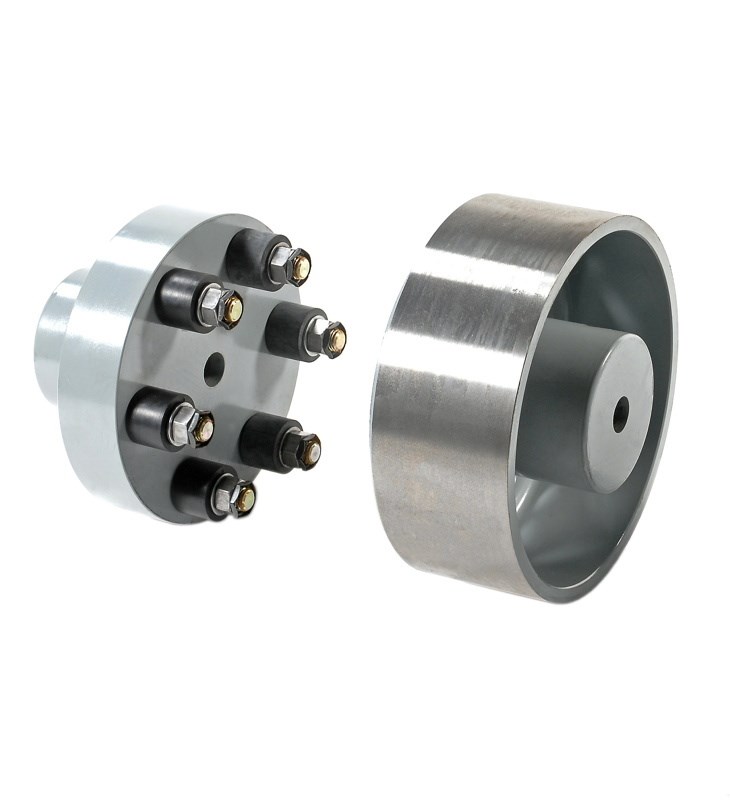

GD.250 Bromstrumma

Bromstrumma med diameter 250 mm, inklusive koppling.

Art.nr.
Benämning
Art.nr. 22007072

GD.250.2.MG BROMSTRUMMA MED KOPPLING, PILOTBORRAD

Art.nr.
Benämning
Art.nr. 22007073

GD.250.2.ML BROMSTRUMMA MED KOPPLING, BORRAD H7, KILSPÅR UNI 6604 H7

Art.nr.
Benämning
Art.nr. 22007074

GD.250.2.MB BROMSTRUMMA MED KOPPLING, BORRAD H7, KILSPÅR UNI 6604 H7,

Art.nr.
Benämning
Art.nr. 22007090

GD.250.2.SG BROMSTRUMMA MED KOPPLING, PILOTBORRAD

Storlek trumma/skiva, Ø A
250
Moment max [Nm]
1210
Material
Model in grey cast iron UNI EN 1561, EN-GJL-250 (M)/Model in spheroidal cast iron UNI EN 1563, EN-GJS-500-7 (S)
Hål
Hub with R cylindrical hole bored H7 and with keyway UNI 6604 H7 (L) / Hub with unbored R hole (G) / Hubs with M and R cylindrical holes bored H7, with keyways UNI 6604 H7 and dynamically balanced hal
