MKH

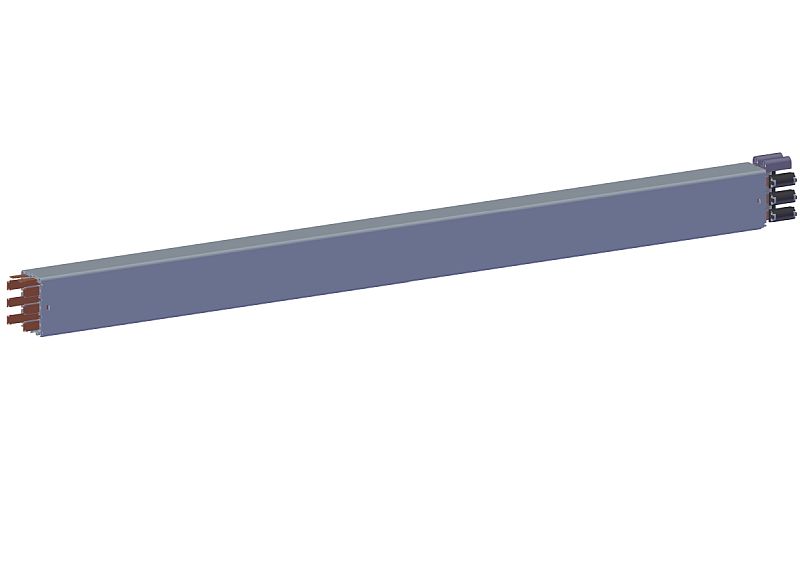

Plastkapslad strömbana

Beröringsskyddad strömbana med PVC-kapsling

Användbar både för inom- och utomhusbruk. Kan även förses med uppvärmning och heldragna kopparledare, samt levereras med horisontella och vertikala kurvor.

Kontakta oss för mer information

Snabbfakta

Poltal
6 - 10
Märkström [A]
40 - 200
Max spänning [V]
690
Temp [°C ]
-30 till +60
IP-klass
IP23, IP24
Möjlig positionering
Ja

Ladda ner

Egenskaper

MKHF Poltal Strömbelastning [A] vid 35°C Max spänning [V]* Vikt [kg/m]
with factory assembled copper strips and plug-in joints 80% Ed 100% Ed
MKHF...6/63-HSC 6 70 63 690 1,638
MKHF...6/63-SSD 6 70 63 690 1,638
MKHF...6/80-HSC 6 89 80 690 1,839
MKHF...6/100-HSC 6 112 100 690 2,176
MKHF...7/63-HSC 7 70 63 690 1,748
MKHF...7/63-SSD 7 70 63 690 1,748
MKHF...7/80-HSC 7 89 80 690 1,949
MKHF...7/100-HSC 7 112 100 690 2,277
MKHF...8/63-HSC 8 70 63 690 1,858
MKHF...8/63-SSD 8 70 63 690 1,858
MKHF...8/80-HSC 8 89 80 690 2,059
MKHF...8/100-HSC 8 112 100 690 2,387
* Nominal voltage UL = 600V
MKHS Poltal Strömbelastning [A] vid 35°C Max spänning [V]* Vikt [kg/m]
with factory assembled copper strips and bolted joints 80% Ed 100% Ed
MKHS...6/63-HSC 6 70 63 690 1,824
MKHS...6/63-SSD 6 70 63 690 1,824
MKHS...6/80-HSC 6 89 80 690 1,95
MKHS...6/100-HSC 6 112 100 690 2,353
MKHS...6/140-HSC 6 140 125 690 2,530
MKHS...6/160-HSC 6 160 143 690 2,773
MKHS...6/200-HSC 6 200 179 690 3,019
MKHS...7/63-HSC 7 70 63 690 1,961
MKHS...7/63-SSD 7 70 63 690 1,961
MKHS...7/80-HSC 7 89 80 690 2,087
MKHS...7/100-HSC 7 112 100 690 2,490
MKHS...7/140-HSC 7 140 125 690 2,667
MKHS...7/160-HSC 7 160 143 690 2,910
MKHS...7/200-HSC 7 200 179 690 3,156
MKHS...8/63-HSC 8 70 63 690 2,098
MKHS...8/63-SSD 8 70 63 690 2,098
MKHS...8/80-HSC 8 89 80 690 2,224
MKHS...8/100-HSC 8 112 100 690 2,627
MKHS...8/140-HSC 8 140 125 690 2,804
MKHS...8/160-HSC 8 160 143 690 3,047
MKHS...8/200-HSC 8 200 179 690 3,293
* Nominal voltage UL = 600V
MKHD with continuous copper strips, to be drawn in during installation Poltal Strömbelastning [A] vid 35°C* Max spänning [V]* Vikt [kg/m]
80% Ed 100% Ed
MKHD...9/63-HSC 9 70 63 690 1,052
MKHD...9/63-SSD 9 70 63 690 1,052
MKHD...9/80-HSC 9 89 80 690 1,052
MKHD...9/100-HSC 9 112 100 690 1,052
MKHD...9/140-HSC 9 140 125 690 1,052
MKHD...9/160-HSC 9 160 143 690 1,052
MKHD...10/63-HSC 10 70 63 690 1,052
MKHD...10/63-SSD 10 70 63 690 1,052
MKHD...10/63-HSC 10 89 80 690 1,052
MKHD...10/100-HSC 10 112 100 690 1,052
MKHD...10/140-HSC 10 140 125 690 1,052
MKHD...10/160-HSC 10 160 143 690 1,052
* Nominal voltage UL = 600V
